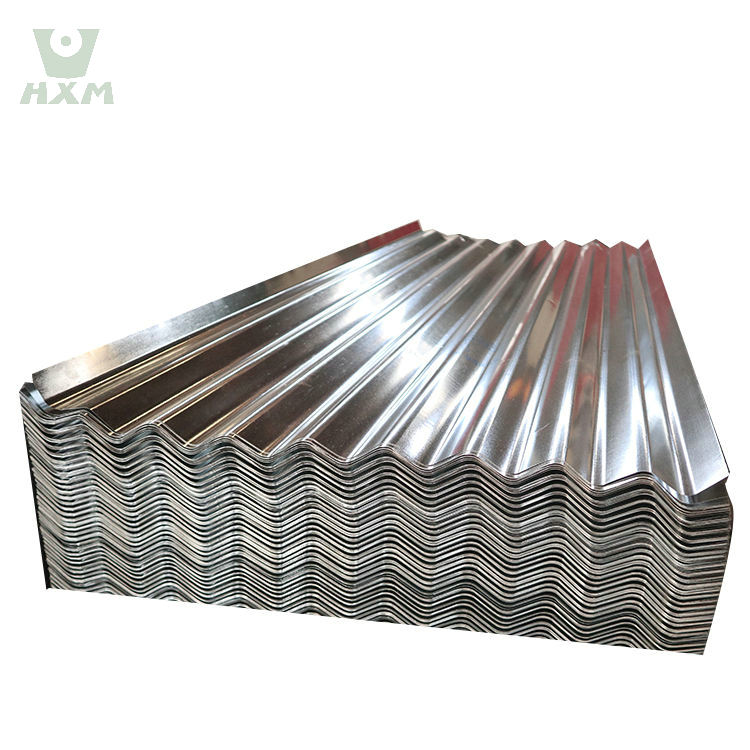

What is hot-dip galvanized sheet?
- July 29, 2024
- 12:25 am
- 430
Hot-dip galvanized sheet refers to a steel sheet that has been coated with a layer of zinc through the hot-dip galvanizing process. This process involves immersing the steel sheet in a bath of molten zinc to create a corrosion-resistant coating.
Commonly used steel grades
Commonly used steel grades for hot-dip galvanized sheet include: general commercial coil (CQ), structural galvanized sheet (HSLA), stamped galvanized sheet (DQ) deep-dip hot-dip galvanized sheet (DDQ), bake-hardened hot-dip galvanized sheet (BH), dual-phase steel (DP), and TRIP steel (phase-change-induced plasticity steel).
Composition and Process of hot-dip galvanized sheet
- Base Material: The base material is typically carbon steel or low alloy steel.
- Zinc Coating: The steel sheet is dipped into a bath containing molten zinc at a temperature of approximately 450°C (842°F).
- Formation of Layers: The zinc coating forms a metallurgical bond with the steel, creating a series of zinc-iron alloy layers topped with a layer of pure zinc.
Benefits and Properties of hot-dip galvanized sheet
- Corrosion Resistance: The primary advantage of hot-dip galvanizing is the enhanced corrosion resistance provided by the zinc coating. This coating acts as a barrier protecting the steel from moisture and oxygen, which can cause rust and corrosion.
- Durability: The zinc coating is robust and can withstand mechanical damage, making the sheet durable for various applications.
- Self-Healing: Zinc has a self-healing property, where minor scratches or damages can be covered by zinc oxide, maintaining protection against corrosion.
- Extended Life Span: The galvanized coating extends the life span of the steel sheet significantly, especially in harsh environments.
Applications of hot-dip galvanized sheet
Hot-dip galvanized sheets are widely used in various industries due to their excellent properties. Common applications include:
- Construction: Used for roofing, siding, structural components, and facades due to its durability and aesthetic appeal.
- Automotive: Utilized in the manufacturing of automobile bodies, frames, and other components to enhance corrosion resistance.
- HVAC: Employed in heating, ventilation, and air conditioning systems for ductwork and components.
- Agriculture: Used for fencing, grain silos, and other agricultural equipment exposed to the elements.
- Electrical: Applied in the production of electrical boxes, panels, and conduits.
Standards and Specifications of hot-dip galvanized sheet
Hot-dip galvanized sheets are produced according to various international standards to ensure quality and performance. Some common standards include:
- ASTM A653 / A653M: Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process.
- EN 10346: Continuously Hot-Dip Coated Steel Flat Products.
- JIS G3302: Japanese Industrial Standard for Hot-Dip Zinc-Coated Steel Sheet and Strip.
Conclusion
Hot-dip galvanized sheet is a versatile and durable product with superior corrosion resistance, making it suitable for a wide range of applications. Its protective zinc coating, formed through the hot-dip galvanizing process, ensures a long life span and reliable performance in various environments.
The primary ASTM standard for hot-dip galvanizing is ASTM A123/A123M. This specification covers the requirements for zinc coatings applied by the hot-dip process on iron and steel products. It includes details on coating thickness, adhesion, and other properties.
Composition:
- Hot-Dipped Galvanized Steel: This is steel coated with a layer of zinc to protect against corrosion. The process involves dipping the steel in molten zinc.
- Stainless Steel: This is an alloy containing a minimum of 10.5% chromium, which provides inherent corrosion resistance through the formation of a passive oxide layer.
Corrosion Resistance:
- Hot-Dipped Galvanized Steel: The zinc coating provides a barrier that prevents corrosive substances from reaching the steel. It is sacrificial, meaning it will corrode over time to protect the underlying steel.
- Stainless Steel: The chromium in stainless steel reacts with oxygen to form a protective layer of chromium oxide, which prevents further corrosion.
Applications:
- Hot-Dipped Galvanized Steel: Used in construction, automotive, and agricultural sectors for items like guardrails, bridges, and outdoor structures.
- Stainless Steel: Used in applications requiring superior corrosion resistance, such as kitchen appliances, medical instruments, and chemical processing equipment.
Hot-dip galvanized steel does not have a single grade like stainless steel. Instead, it refers to the process of applying a zinc coating to steel. The properties of galvanized steel can vary depending on the base steel used. Common base steels include structural grades like ASTM A36 or high-strength low-alloy grades like ASTM A572.
Yes, hot-dip galvanized steel can eventually rust, but it has a significantly extended lifespan compared to uncoated steel. The zinc coating provides a sacrificial layer that corrodes first, protecting the underlying steel. The longevity of the protection depends on the environment and thickness of the zinc coating.
- Galvanized Steel: Generally refers to steel that has been coated with zinc to prevent rusting. This can include both electro-galvanized and hot-dip galvanized methods.
- Hot-Dipped Galvanized Steel: Specifically refers to the process where steel is submerged in molten zinc to form a thick, durable coating. This method provides better corrosion resistance compared to electro-galvanizing.
The ISO standard for hot-dip galvanized coatings is ISO 1461. This standard specifies the requirements for the thickness and appearance of hot-dip galvanized coatings on fabricated iron and steel articles. It includes guidelines for testing and quality control to ensure consistency and reliability.
